Film degasser systems are an effective—and cost-effective—solution to the challenges of degassing HPLC solvents. The Model 403 Series uses a planar membrane sandwiched between a flow channel and a vacuum plate fixed at its ends with a compression fitting. (Figure 1).
Figure 1. Schematic of a Single Film Planar Degasser
The double-sided planar degasser series uses the same principle but with a unique internal architecture. A central flow plate separates two parallel pathways, each with a Teflon™ AF membrane and vacuum chamber. The eluent flows down one face of the flow plate and back along the other face (see Figure 2). This provides a large interaction area resulting in highly effective de-bubbling and very efficient degassing.
Figure 2. Schematic of a Dual-Film Planar Degasser
Advantages of Film Degassers as Replacements
Film degassers are also a cost-effective replacement for degassers which use tubular Teflon™ AF 2400 membranes. Since pump cavitation becomes more serious at higher flow rates, it is advantageous that the degassing efficiency curves of the planar degassers are flatter than those of degassers based on a tubular degassing membrane. (See Figure 3)
Figure 3. Degassing Efficiency in Methanol: The range of degassing efficiencies available from a series of Model 403 vacuum degassing chambers. All of these results are from the same degasser body having a dead volume of 530 microliters. The different efficiencies result from changes in the membrane configuration and do not involve any change in backpressure or pressure drop across the degasser. The curves are labeled with each model’s part number.
- P/N 403-0202-1 removes about 94% of air at a flow rate of 1 mL/min
P/N 403-0202-1 removes about 70% of air at a flow rate of 5 mL/minP/N 403-0201-1 removes about 80% of air at a flow rate of 1 mL/minP/N 403-0201-1 removes about 40% of air at a flow rate of 5 mL/min

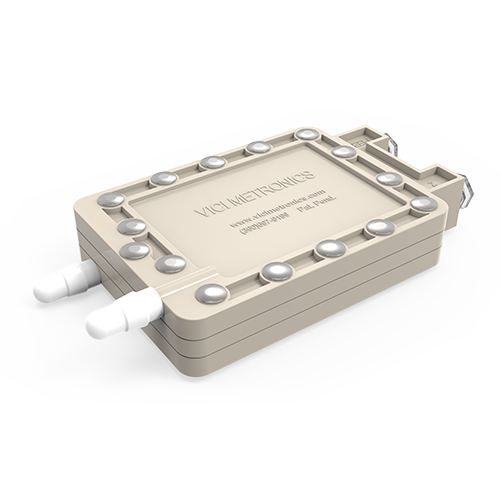

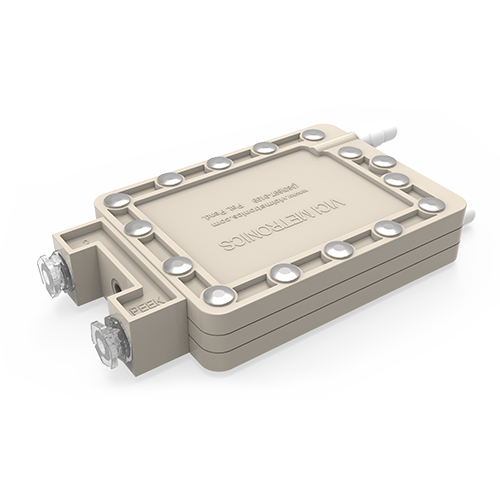

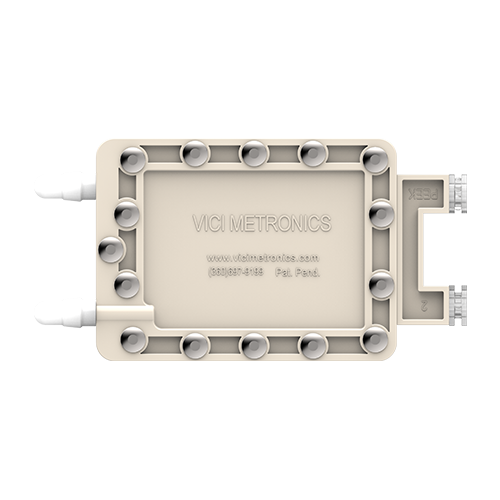

Model 403 Degasser Series
|
Specification |
Series 403 Degassing Chambers |
|
Size |
83 mm x 48 mm x 13 mm (3.25 x 1.88 in x .52 in) |
|
Liquid Connections |
¼ -28 flat bottom ports |
|
Vacuum Connections |
Hose barb for 3 mm (1/8 inch) ID tube |
|
Dead Volume |
533 microliters |
|
Wetted Materials |
PEEK and Teflon™ AF |
|
Vacuum Seal |
Less than 34 mbar (3.3 kPa) leak in 10 minutes |
|
Pressure Test |
335 kPa internal pressure, 95 kpa applied vacuum |
|
Actual Pressure Drop (average) at 1 mL/min water |
Less than 3 mbar (274 Pa) with vacuum applied |
|
Suitable replacement for VICI Metronics degasser models: |
9000-1000 9000-1004 9000-1006 9000-1184 9000-1009 9000-1810 9000-1818 |
