Solid Color-Coded PEEK Tubing 1/16" OD

VICI MetronicsSKU: MT-T-62004-BK

ID: 0.004" (0.1 MM) ID
Color: BLACK

Overview

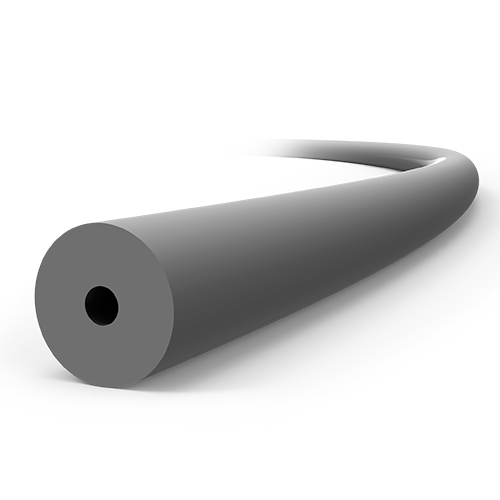

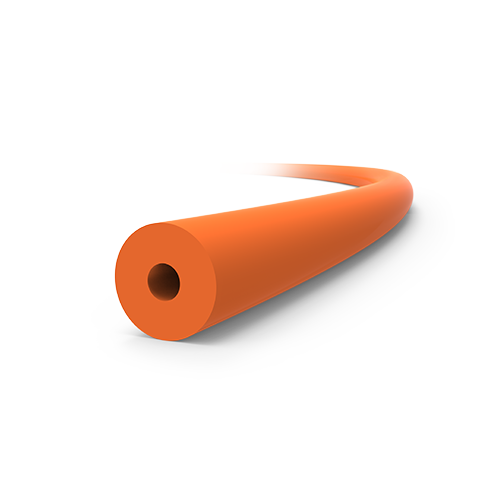

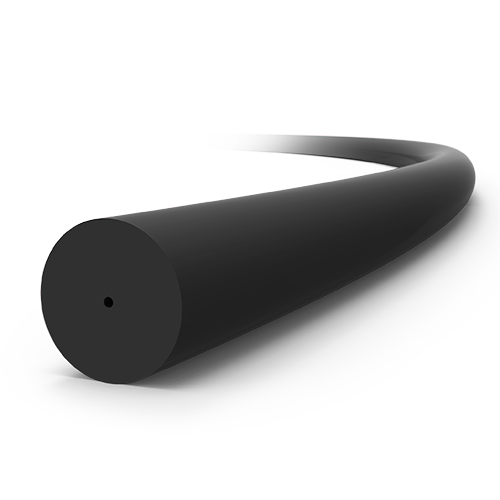

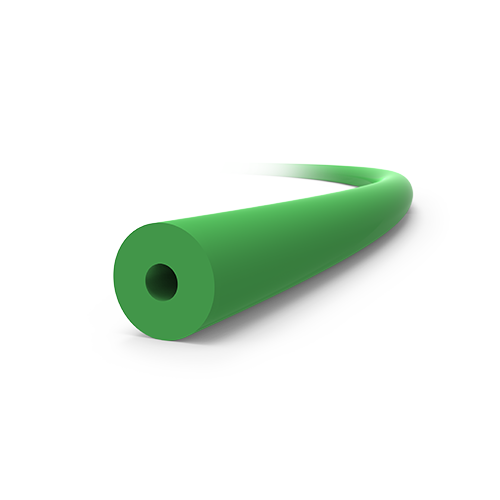

Solid Color PEEK tubing is a single layer of extruded PEEK that has been colored for easy ID (Inner Diameter) dimensional identification. Solid color PEEK is metal-free and ideal for applications that require fast and easy dimensional identification.

Click here to download brochure.

If your application requires 100% natural PEEK throughout the inner circumference of the tubing, click here to learn more about VICI Metronics’ exclusive dual-layer PEEK tubing.

The 1/16” OD solid color PEEK tubing is available in standard sizes or OEM quantities with any ID specified from 0.002” (0.0508 mm) to 0.030” (0.75 mm).

Solid color PEEK tubing allows users to identify which tubing has what ID dimensions quickly and easily. This tubing is manufactured with a permanent colorant that will not rub off. A cross-section of this tubing shows the color is distributed evenly between the inner and outer circumferences.

Because this tubing is metal-free, it will not leach metal ions into the eluent or extract metal-sensitive components from the sample.

Some typical applications for VICI Metronics’ solid color PEEK tubing include:

  • High Pressure or Performance Liquid Chromatography (HPLC)
  • Gas Chromatography (GC)
  • Solvent Transfer
  • Chemically Inert (High Purity) Gas Transfer


For applications with high sensitivity that require raw PEEK for transport, click here to learn about VICI Metronics’ exclusive dual-layer tubing.

VICI Metronics solid color PEEK tubing is compatible with all Valco fittings, high and low-pressure, Valco fittings, and all tube compression fittings. The standard 1/16” tubing will be compatible with all 1/16” fittings, and as such can often be used as an alternative to steel tubing where applicable.

Unsure about what is needed for your application? Contact our tubing specialists today!

Maximum Operating Temperature
Use solid color PEEK tubing at continuous operating temperatures up to 200°C (392°F) for 1/16” OD with ID up to 0.030” (0.75 mm).
Maximum Operating Pressure & Coloring by Tubing ID

Tubing ID

[inch (mm)]

Color

Max. Operating Pressure

[psi (bar)]

Product Number

0.004 (0.102)

Black

6,700 (460)

MT-T-62004-BK

0.005 (0.127)

Red

6,700 (460)

MT-T-62005-RD

0.007 (0.178)

Yellow

6,400 (440)

MT-T-6200 7-YL

0.010 (0.254)

Blue

6,100 (420)

MT-T-62010-BL

0.015 (0.381)

Gray

5,500 (379)

MT-T-62015-GR

0.020 (0.508)

Orange

5,000 (345)

MT-T-62020-OR

0.030 (0.762)

Green

3,800 (262)

MT-T-62030-GN

Actual color may vary from on-screen representation.
