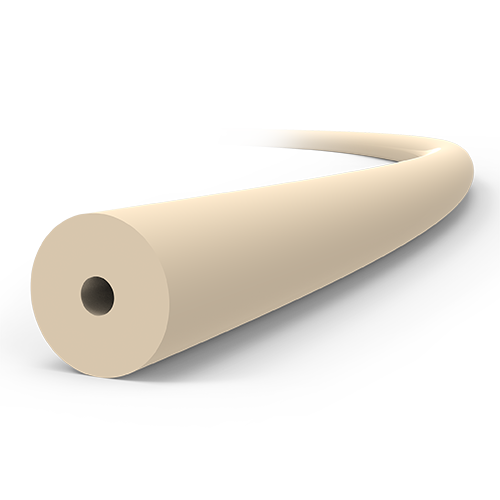

Natural PEEK Tubing 1/16" OD

VICI MetronicsSKU: MT-T-62002

ID: 0.002" ID


Natural 1/16" OD PEEK tubing is available in multiple IDs.

PEEK tubing has the strength required to withstand continuous use at HPLC pressure without swelling or bursting and is not affected by halide salts, high-strength buffers, or other aggressive mobile phases that corrode stainless steel. The polymer surface will not leach metal ions into the eluent or extract metal-sensitive components from the sample. Note however that dichloromethane, THF, and DMSO may cause swelling in PEEK, and concentrated nitric and sulphuric acid will attack PEEK.

Tubing ID PSI*
.002" 7000
.003" 6800
.004" 6700
.005" 6700
.006" 6500
.007" 6400
.010" 6100
.015" 5500
.020" 5000
.030" 3800
.040" 2600
.055" 800

* Recommended maximum permanent working pressures calculated from the burst pressure and the factor 2.5

Tolerance is ±.0005" for IDs up to .010", and ±.001" for larger IDs.

Actual color may vary from on-screen representation.
