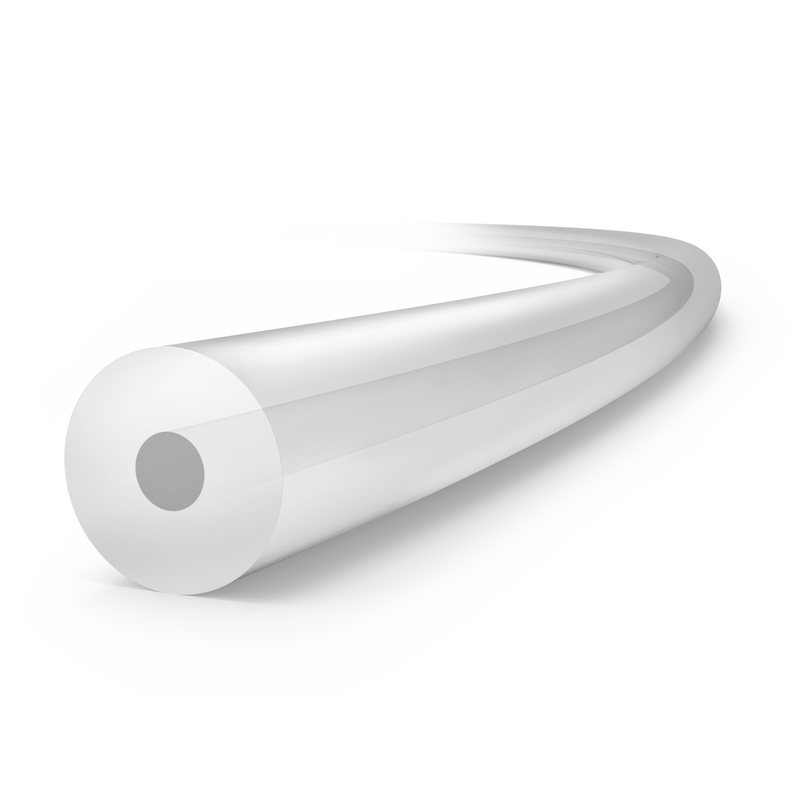

FEP TUBING 0.118" OD

VICI MetronicsSKU: MT-F-118079

ID: 0.079" ID
Color: NATURAL

Overview

FEP stands for fluorinated ethylene propylene and offers high chemical resistance. This fluoropolymer can be manufactured with very small IDs (inner diameters) - VICI Metronics can manufacture 1/16” OD (outer diameter) FEP fluoropolymer tubing with IDs as low as 0.005” (0.127 mm). In addition to 1/16” OD sizing, VICI Metronics also offers FEP fluoropolymer tubing in 1/8” and 3/16” ODs. FEP fluoropolymer tubing is most often used for liquid transfer, as its transparency allows for easy observation of the sample it transports.

Order Specifications
The 1/16” OD FEP fluoropolymer tubing is available in standard sizes or OEM quantities with any ID specified from 0.002” (0.0508 mm) to 0.030” (0.75 mm).

FEP is inherently chemically resistant and can be manufactured with extremely small inner diameters. These attributes combined with FEP’s transparency and low coefficient of friction make this fluoropolymer tubing ideal for liquid transfer. This tubing has the highest demand for flanging, which is regularly done in-house at VICI Metronics.

Click here to see our flanging options.

Applications that our fluoropolymer tubing include:

  • Medical sample transport
  • Food-grade applications
  • Liquid transport

Click here to see our ROHS, FDA, and [insert other certifications] certifications.

Concerned about your application that is not listed above? Contact us today to determine if FEP fluoropolymer tubing is right for you.

VICI Metronics FEP fluoropolymer tubing is compatible with all Valco fittings, high and low-pressure Valco fittings, and all tube compression fittings. The standard 1/16” tubing will be compatible with all 1/16” fittings, and as such, can often be used as an alternative to steel tubing where applicable.

Unsure which type of tubing you need for your application? Contact our tubing specialists today!

Maximum Operating Temperature

Use FEP fluoropolymer tubing at continuous operating temperatures up to 200°C (392°F).

Maximum Operating Pressure by Tubing ID

Tubing ID

[inch (mm)]

Max. Operating Pressure

[psi (bar)]

Product Number

0.010 (0.254)

2,000 (138)

MT-F-62010

0.020 (0.508)

1,400 (96.5)

MT-F-62020

0.030 (0.762)

1,100 (75.8)

MT-F-62030

0.040 (1.016)

750 (51.7)

MT-F-62040

0.060 (1.52)

1,180 (81.4)

MT-F-12560

0.062 (1.59)

1,140 (78.6)

MT-F-12562

0.079 (2.0)

750 (51.7)

MT-F-118079

0.083 (2.1)

760 (52.4)

MT-F-125083

0.125 (3.175)

750 (51.7)

MT-F-187125

Actual color may vary from on-screen representation.
